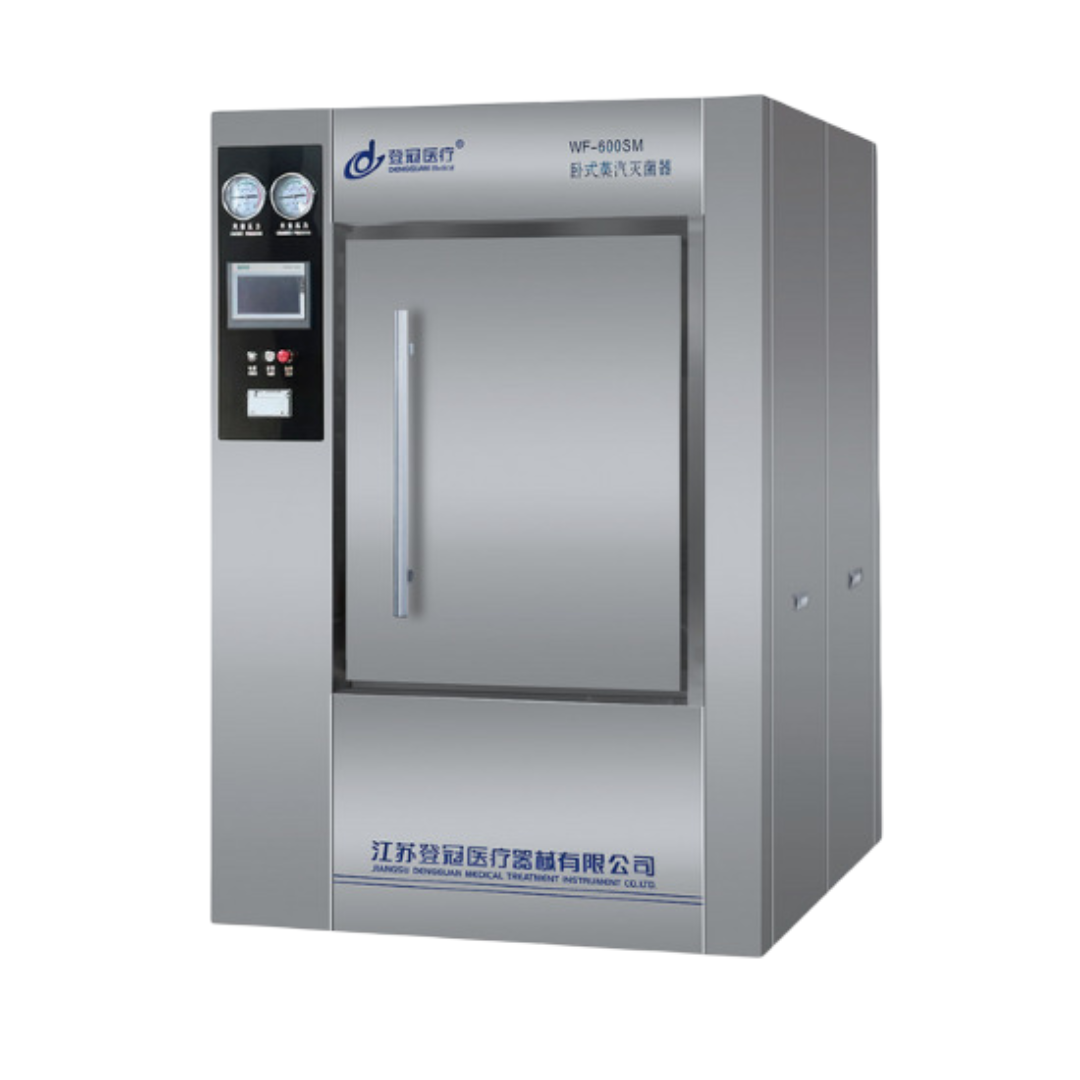

Horizontal Steam Sterilizer with Dryer

Key Features and Benefits

• Integrated Drying Function: The unit has a horizontal chamber with a jacket structure that provides excellent insulation and an effective drying function, making it suitable for sterilizing fabrics and instruments that need to be completely dry after the cycle.
• Automated Control System: The sterilization process (water adding, heating, sterilizing, exhausting, and drying) is fully automatic and controlled by a microcomputer with a human-machine interface (HMI) touch screen display, ensuring ease of operation and reliability.
• Robust and Safe Design:
  • The chamber, door, and pipeline system are made of corrosion-resistant SUS304 stainless steel.
  • It features a disc-type embedded gear and electric lock door structure with pneumatic seals for safety and reliability.
  • A positive self-locking safety door mechanism ensures the door cannot be opened until the pressure inside the chamber is reduced to a safe level.
• Comprehensive Safety Alarms: Multiple safety protections include automatic cut-off and alarms for over-temperature, over-pressure (with an automatic safety valve), and lack of water.
• Sterilization Monitoring: The system guarantees the sterilization effect by monitoring both F0 value (sterilization dose) and temperature/time parameters, providing a complete sterilization record and traceability functions.
• Versatile Programs: It offers multiple customizable sterilization programs for various items, including fabrics, equipment, liquids, and B-D (Bowie-Dick) tests.
