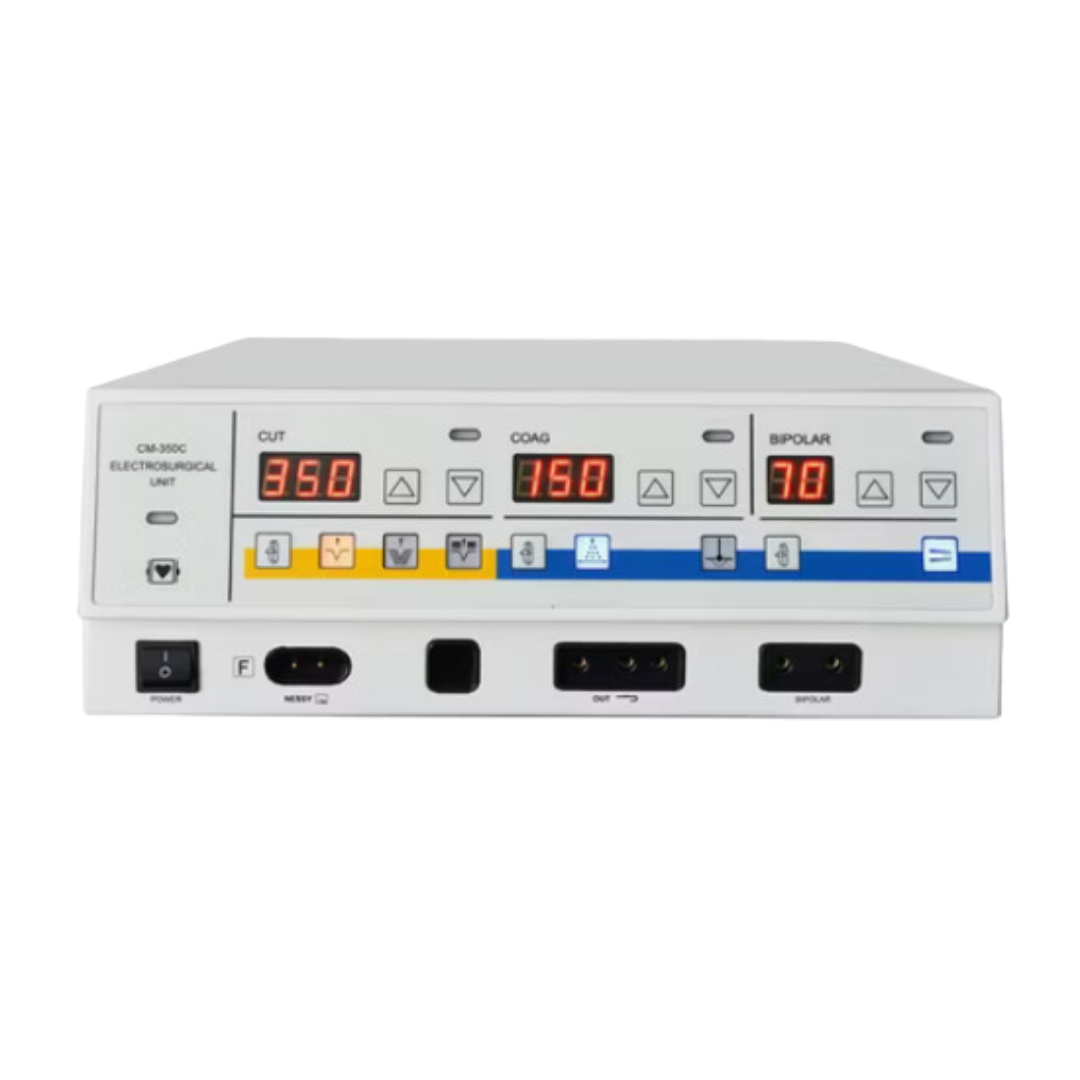

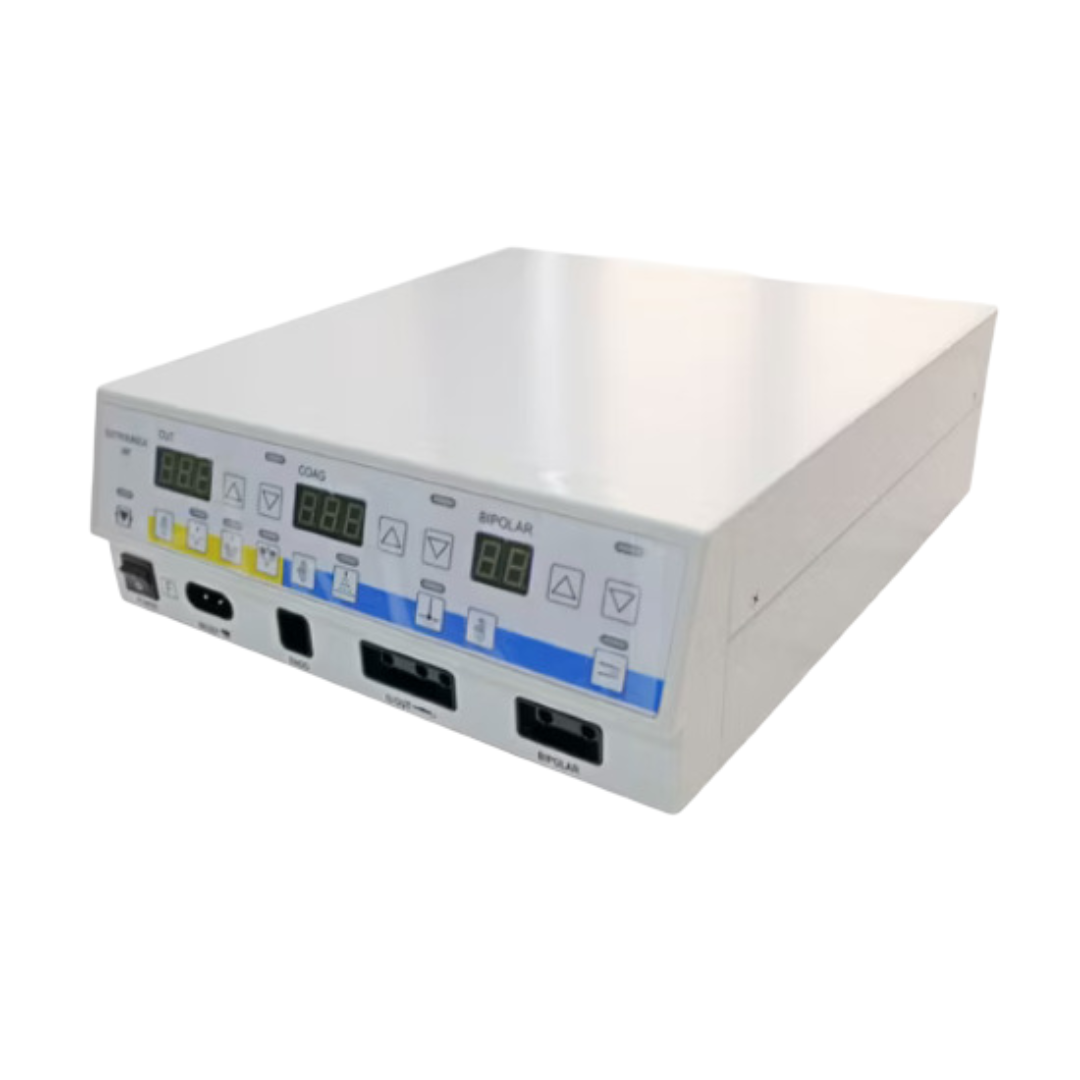

Electro Surgical Unit 6 Modes

The LTSG13 Electro Surgical Unit (ESU) is a high-frequency surgical generator with six distinct working modes for versatile mono-polar and b-ipolar procedures. It has a maximum output of 400W and is applicable across various surgical disciplines, including general, orthopedic, and urological surgery.

SKU: BL-MMachines-09 Category: Medical Machines

Description

Key Features and Specifications

Feature	Detail
Max Power Output	400W (Cut function at 500Ω load)
Operating Frequency	330-460 kHz
Safety System	High-performance Neutral Electrode Contact Inspection System (REMS) that alarms if the contact area is low to prevent patient burns.
Display	High definition large LED indication with audio and visual alarms.
Control	Both hand-switch and foot-switch operation are supported.
Memory	The unit retains the last used settings after being turned off.
Versatility	Capable of cutting underwater and applicable with endoscopes.

The LTSG13 is designed for a wide range of surgical applications, including ENT surgery, urology (including underwater TUR), neurosurgery, and orthopedics

The Six Working Modes

The LTSG13 unit offers specific modes tailored to different surgical requirements, from refined cutting to deep coagulation.

Cut (Pure Cut): Provides a refined cutting effect with no escharosis (scabbing) on the surface of the tissue.
Blend 1: Delivers a cutting effect combined with tiny coagulation.
Blend 2: Offers better coagulation during cutting, often used with an endoscope.
Spray Coag. (Electro Coag 1): This is “strength electro-coagulation” or surface coagulation, providing a deeper coagulation layer for tissues, suitable for smaller effect areas.
Contact Coag. (Electro Coag 2): Known as “soft coagulation” or point coagulation, it offers faster coagulation over a larger effect area.
Standard Bipolar Coag.: Provides rapid coagulation function to prevent adhesion of organic tissue when the unit starts up.
