Technical Specifications
| Feature | Detail | |
|---|---|---|
| Max Power Output | 400W (Pure Cut, at 500Ω load) | |
| Operating Frequency | 416 kHz (range 360-512 kHz depending on model variant) | |
| Power Supply | AC 110V/220V ±10%, 50/60Hz | |
| Power Consumption | ≤1100 VA | |
| Safety Class | Class I, Type BF (defibrillation-protected) |
Key Features

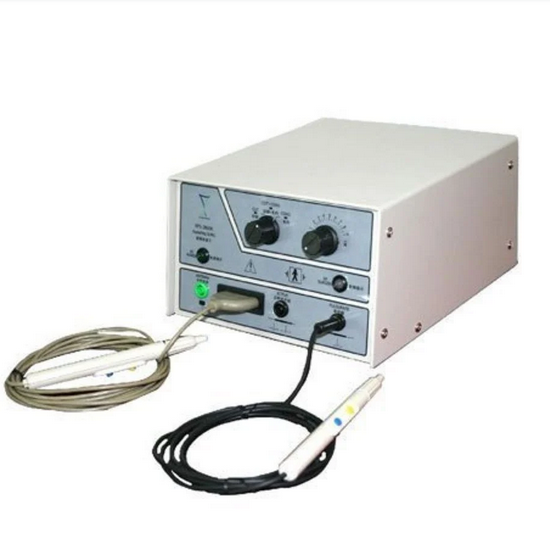

- Six Working Modes: The CM-350C offers distinct modes for monopolar cutting and coagulation, as well as standard bipolar coagulation.
- Safety Monitoring: It features a high-performance Neutral Electrode Contact Inspection System (NESSY) that continuously monitors the contact quality of the patient plate. If poor contact is detected (e.g., contact area below 75%), an audible and visual alarm activates, and the output is cut off to prevent patient burns.
- Automatic Compensation: The unit is equipped with a full-function automatic power compensation system to maintain stable output power regardless of tissue impedance changes, ensuring consistent surgical effects.
- Versatile Application: The machine is suitable for a wide range of surgeries, including general surgery, urology (underwater cutting), neurosurgery, orthopedics, and can be used with endoscopes and laparoscopes.
- User Interface: It features a high-definition large LED display, along with audio and visual indicators for alarms and power settings.
- Control Options: The unit supports both hand-switch and foot-switch operation for enhanced flexibility during procedures.
