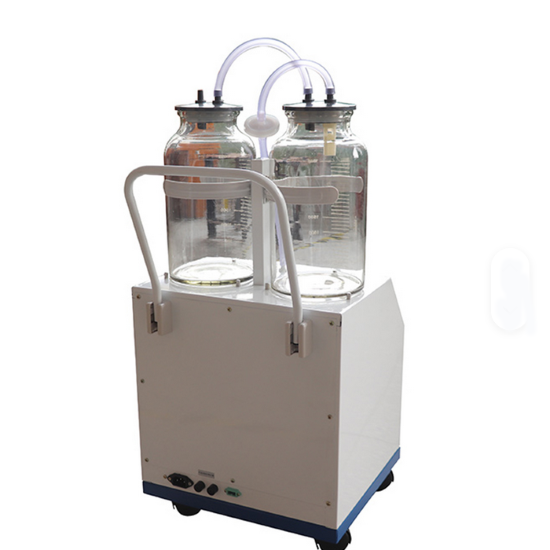

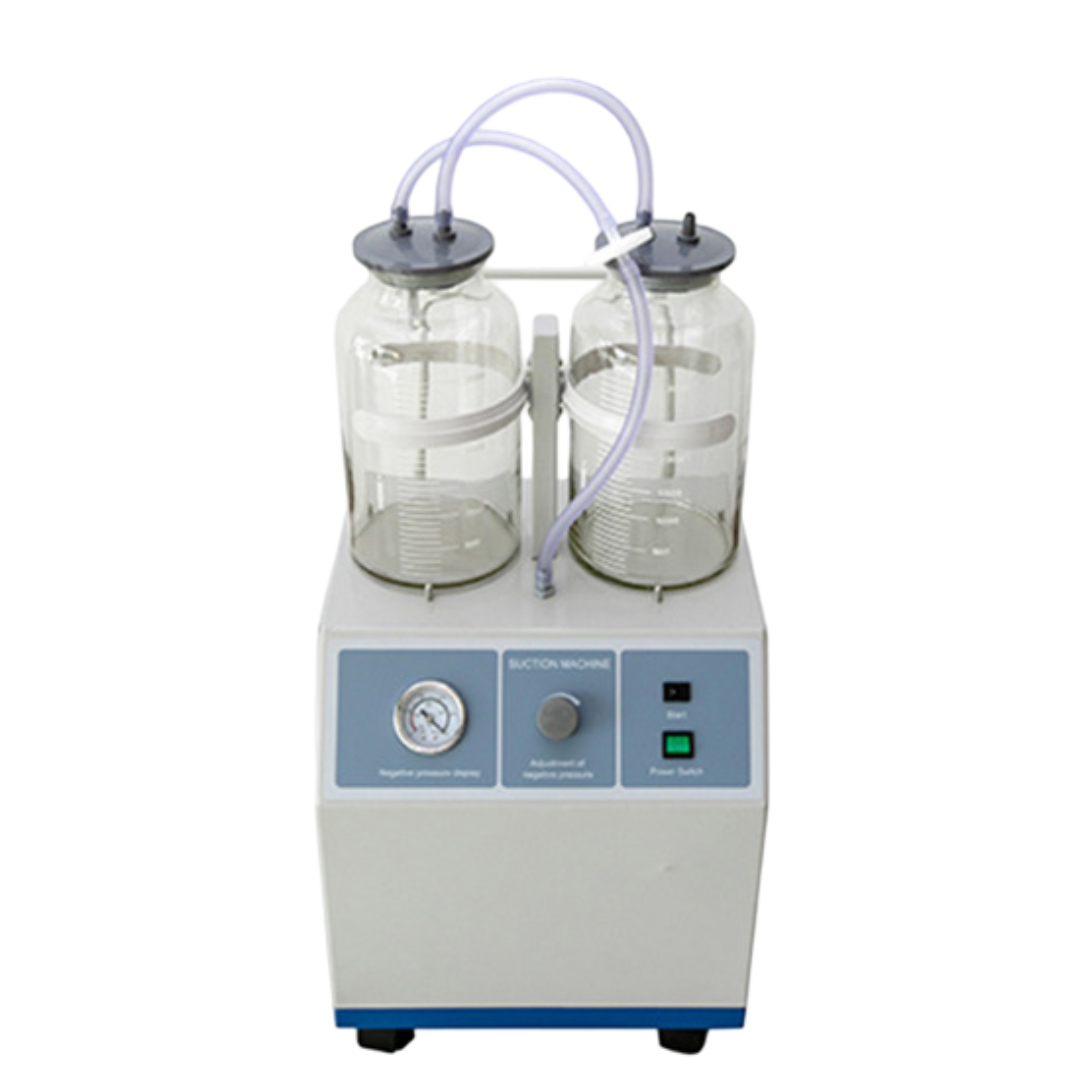

Portable Electric Suction Machine
The KD-3090 Portable Electric Suction Machine is a series of compact, high-negative pressure medical devices used for aspirating fluids like sputum and blood in clinical and emergency settings. These machines use an oil-free piston pump and often feature both AC power and a built-in rechargeable battery for portability.
Specifications
The specifications for the KD-3090 series can vary slightly depending on the exact model (e.g., KD-3090A, KD-3090A2, KD-3090D1), but they share core design principles.
| Feature | Detail (Common to series) | |
|---|---|---|
| Max Negative Pressure | ≥0.09 MPa (~680 mmHg) for A/A2 models; ≥0.05 MPa (~378 mmHg) for D1 model | |
| Flow Rate (Exit) | ≥30 L/min for A/A2 models; ≥6 L/min for D1 model | |
| Reservoir Capacity | 1000 ml × 1 or 2500 ml × 2 jars (plastic/glass) | |
| Operating Noise | ≤55 dB(A) for D1 model; ≤60 dB(A) for A2 model | |
| Power Voltage | AC 220V, 50Hz (some models have built-in rechargeable batteries) | |
| Pump Type | Oil-free, self-lubricated piston pump |
Key Features and Benefits
- Oil-Free Pump: Utilizes an oil-free pump mechanism that eliminates the need for lubrication, reducing maintenance and preventing oil and smoke pollution during operation.
- Portability: Designed to be lightweight and compact, making it easy to carry for use in ambulances, home care, or various hospital departments.
- Dual Operation Modes: Many models feature both a hand switch and a foot switch, connected in parallel, offering operational flexibility and hands-free control.
- Safety Features: Includes an overflow protection device to prevent liquid from entering the pump, ensuring the device’s longevity and hygienic use.
- Versatile Use: Suitable for a wide range of medical applications, including the operating room, emergency first aid, gynecology (e.g., induced abortion procedures), and pediatrics.
- Adjustable Suction: The negative pressure can be regulated as needed using a step-less pressure adjustment knob and gauge, ensuring safe and effective suction for different patient needs.
