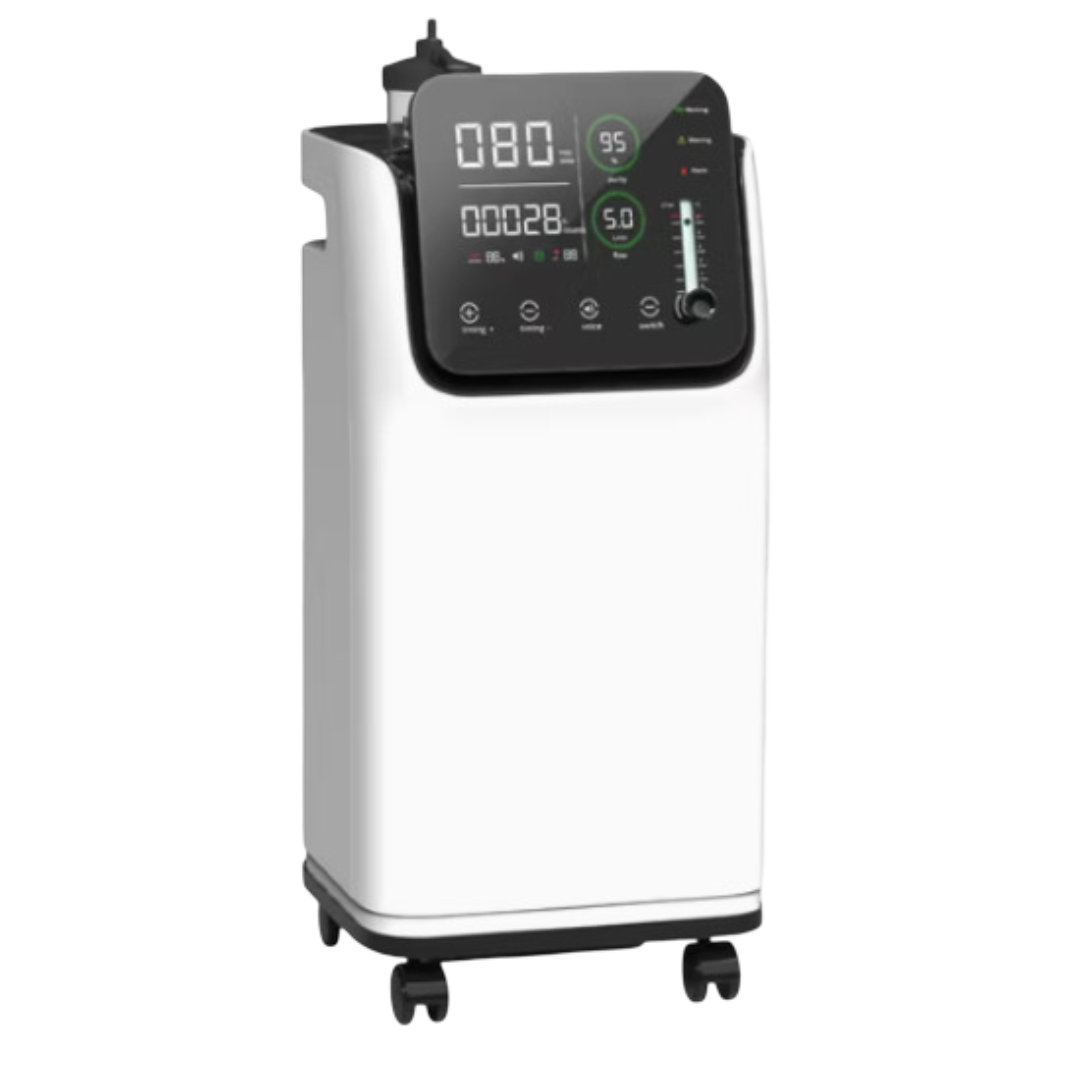

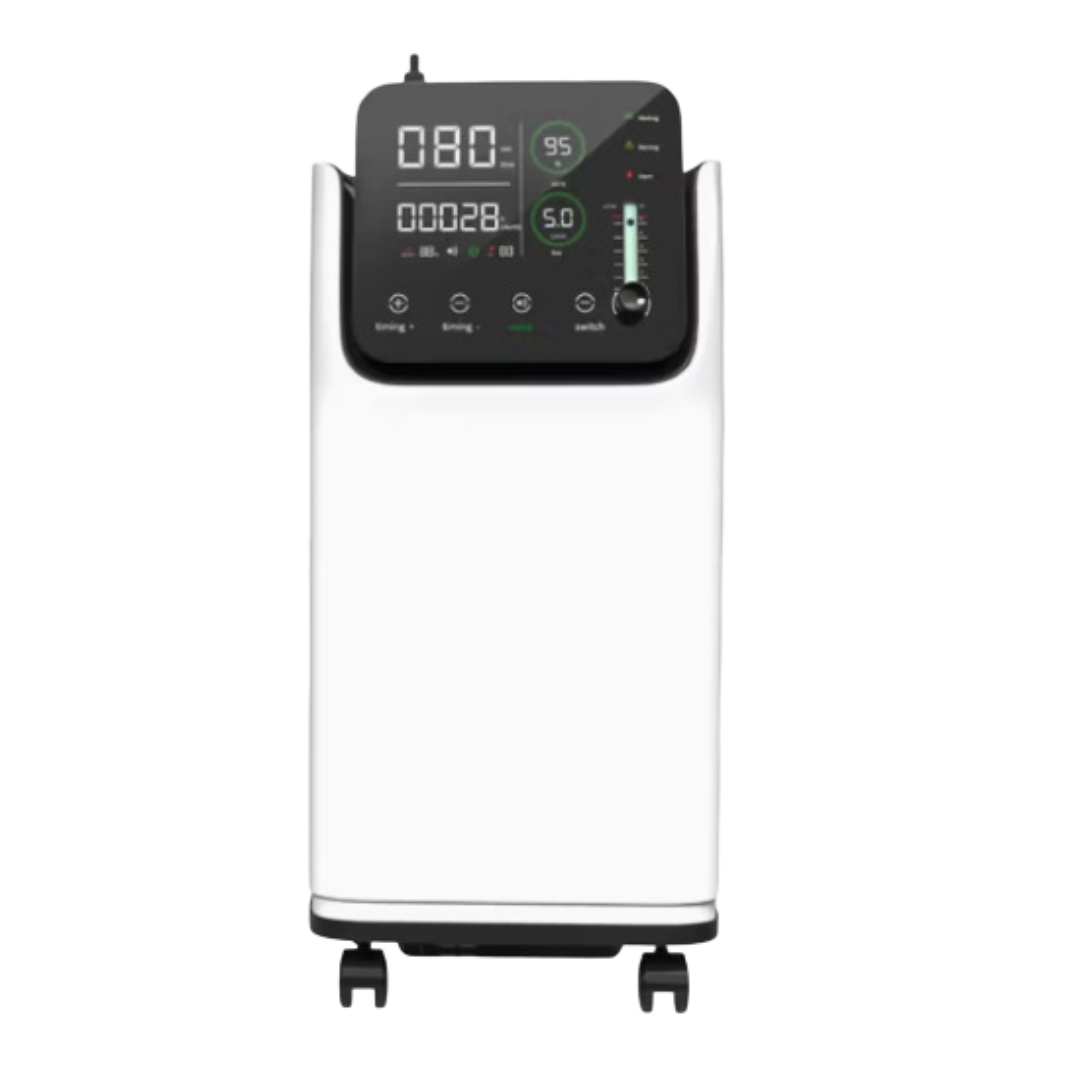

Oxygen Concentrator with Nebulizer ZY-5AW
The ZY-5AW Oxygen Concentrator by Hefei (often branded as Hefei Yameina or Amonoy) is a 5-liter capacity medical device designed for home and hospital use, notable for its integration of an atomizing (nebulizer) function. It is built to provide a continuous flow of high-purity oxygen quietly and efficiently.
Key Features and Benefits
- Integrated Nebulizer Function: The ZY-5AW includes an atomization function, allowing the same machine to be used for both oxygen therapy and aerosol treatments for the respiratory tract.
- High Oxygen Purity: It consistently delivers oxygen at a medical-grade concentration of 93% ± 3% across flow rates from 0.5 L/min up to its maximum of 5 L/min.
- Quiet Operation: Engineered for home use, the device operates at an ultra-low noise level of typically less than 45 dB(A), suitable for night-time use and undisturbed sleep.
- Intelligent Controls:
- Large LCD Display: A clear screen displays total working hours, current working time, and other settings.
- Remote Control: Allows for convenient, distant operation by the patient or caregiver.
- Timing Function: Users can set specific operating times (e.g., 30, 60, 90, 120 minutes) for controlled use.
- Voice Broadcast: Provides intelligent voice control and announcements of settings.
Technical Specifications
| Features | Detail | |
|---|---|---|
| Oxygen Flow Rate | 0.5 to 5 L/min (adjustable) | |
| Oxygen Concentration | 93% ± 3% | |
| Noise Level | ≤45 dB(A) | |
| Outlet Pressure | 20 kPa – 70 kPa | |
| Input Power | 400 VA | |
| Dimensions (LWH) | 305 × 308 × 680 mm | |
| Weight | ~20 kg |
