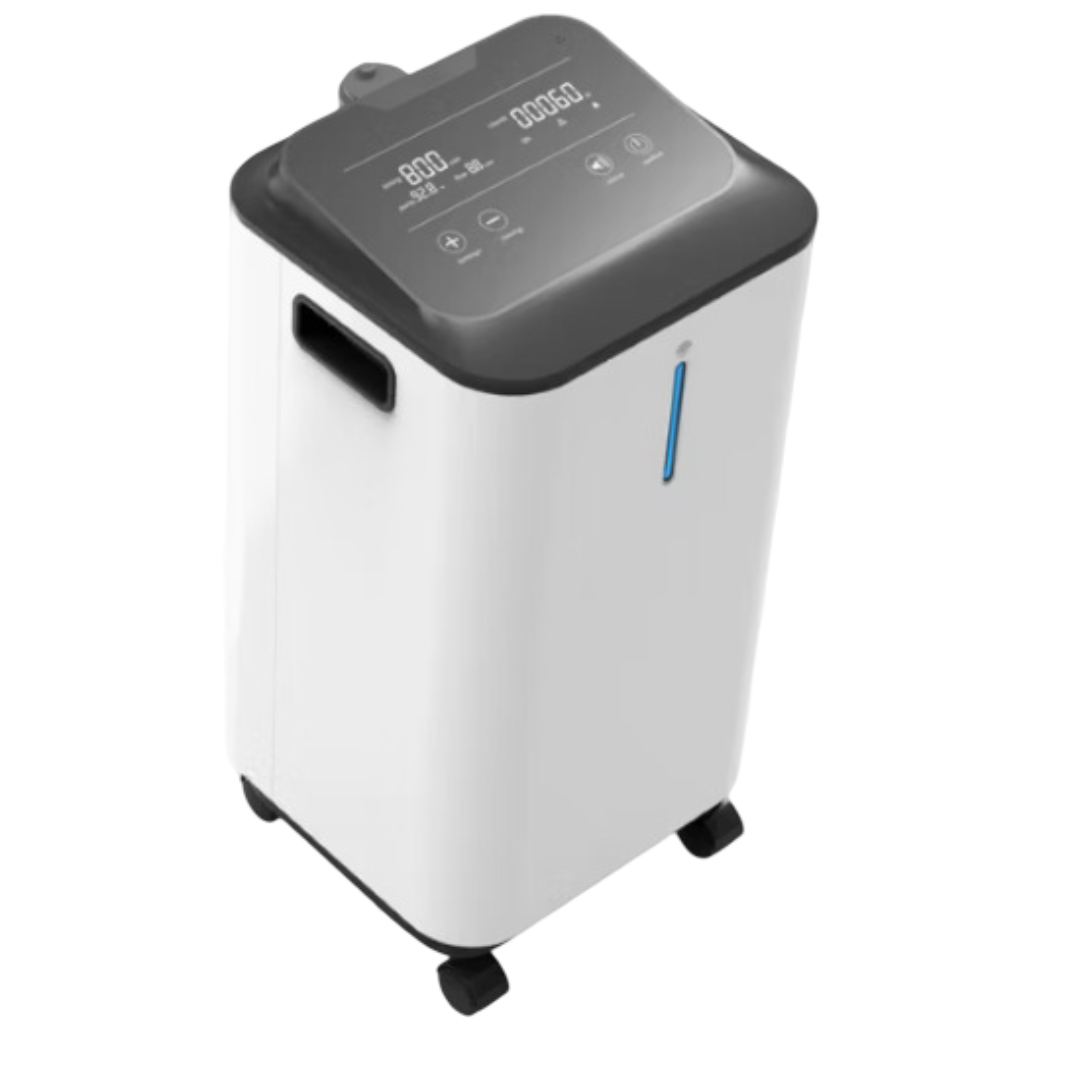

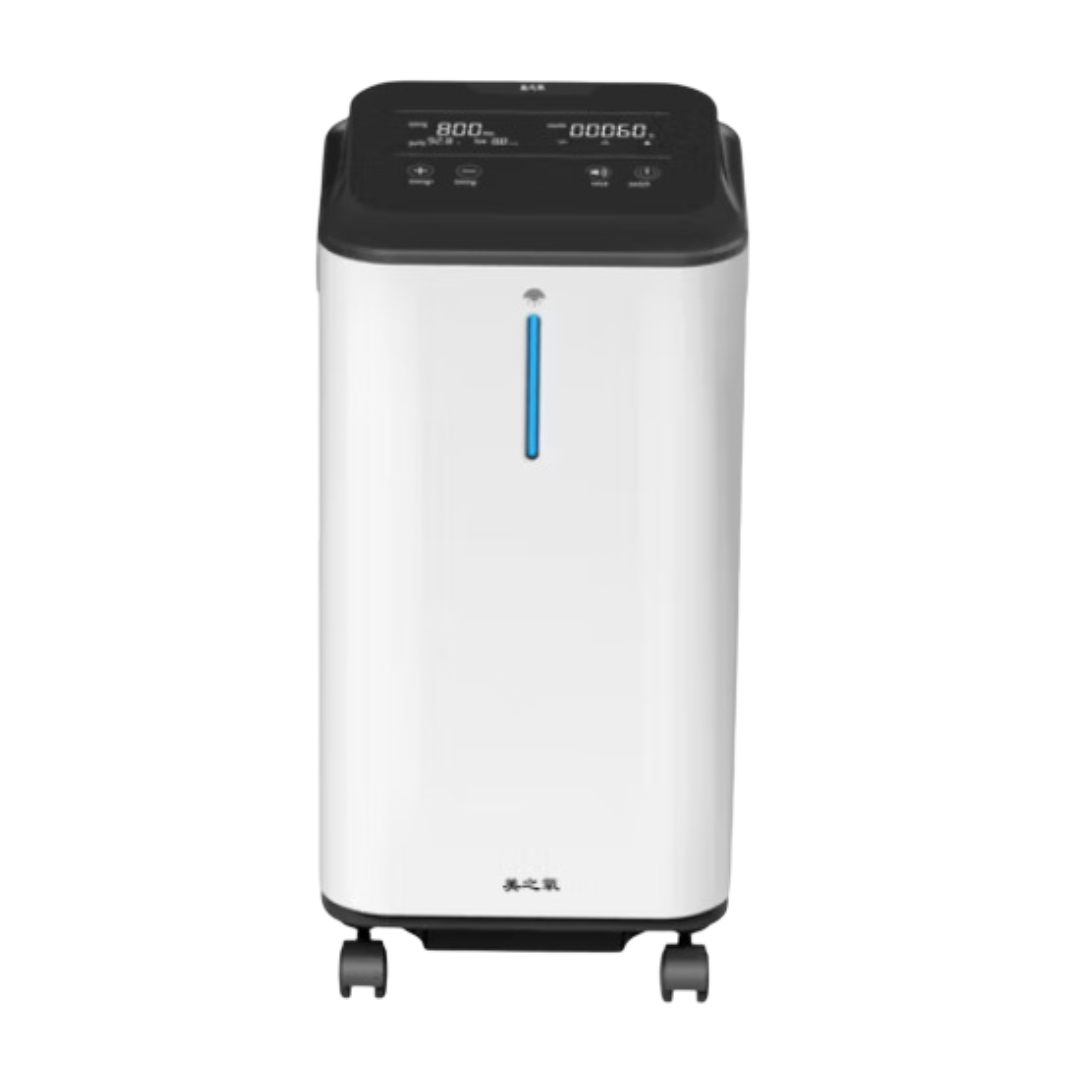

Oxygen Concentrator with Nebulizer ZY-5ZW
The ZY-5ZW is very similar to the ZY-5AW model but is generally more compact in size and slightly lighter. The ZY-5AW model typically offers a wider low-range oxygen flow starting at 0.5 L/min, whereas the ZY-5ZW typically starts at 1 L/min. Both models share the same core high-purity oxygen output and nebulizer features
Key Features and Benefits
- Integrated Nebulizer Function: Like its counterpart the ZY-5AW, the ZY-5ZW has a dedicated port and kit for atomization therapy, combining two essential respiratory treatments in one machine.
- High Oxygen Purity: It provides a stable, medical-grade oxygen concentration of 93% ± 3% at all adjustable flow rates, from 1 L/min up to its maximum of 5 L/min.
- Ultra-Low Noise Operation: The ZY-5ZW is designed to be quiet, operating at a noise level of typically less than 50 dB(A) (some sources specify ≤45 dB(A)), making it suitable for night-time use in a home environment.
- Intelligent and User-Friendly Design:
- Features a large, high-definition LED screen for easy viewing of total runtime and current settings.
- Includes a remote control and intelligent voice broadcast function for ease of use, especially for the elderly or disabled.
- A timing function allows users to set specific shutdown times.
- Safety Mechanisms: The device includes a multiple alarm system for safety, covering power failure, low voltage, low flow, and optional low oxygen purity.
- Durable Filtration: Utilizes an 8-stage filtration system, including imported molecular sieves, to ensure clean and safe oxygen delivery.
Technical Specifications
| Feature | Detail | |
|---|---|---|
| Oxygen Flow Rate | 1 L/min to 5 L/min (adjustable) | |
| Oxygen Concentration | 93% ± 3% at all flow rates | |
| Noise Level | ≤50 dB(A) (or ≤45 dB(A) for certain variants) | |
| Outlet Pressure | 25 kPa ± 10% | |
| Input Power | 400 VA or 280 VA depending on model variant | |
| Dimensions (LWH) | 302 × 310 × 587 mm (More compact than the ZY-5AW model) | |
| Weight | ~20 kg |
